Press brake tools (corrugated and Emboss) bending machine compound tool U/V type

FOB Reference Price:Get Latest Price
$180.00 - $200.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Quapin
Model Number:
Punches
Shaping Mode:
Bending
Product Material:
Metal
Product:
Molds
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case, Carton.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 To be negotiated

1 (1)1



Bending mold details
Material42CrMo
Hardness45-50HRC
OptionBlack-antirust
StandardSegmented, Arc, International Standard, Three Point, Non-Streaking, Adjustable Groove, Special, etc
Delivery time5 - 10 Days
Model Number
Large machetes, special custom gooseneck type, straight-edged swords, single V lower die, double-folded upper and lower die; Flanged side avoidance bent upper die, same core 2V rail fixed standard lower die, R round-arc roller fold Bending die, 2V bolt-fixed standard lower die, 1V slot standard lower die, 1V thick panel corner bend lower die, excellent gel lower die, multiple V lower die, various die seats, seamless bending Module, segment differential mode combination, etc



Product Description

4

IMG_7325IMG_7313IMG_7307IMG_7293



IMG_7342



12



01

a1



Bending mold orderin

According to the different requirements of customers, choose the best mold design program, with the fastest time, the best quality to meet customer requirements. In addition, if you have difficulties in selecting a mold, please contact our company. Please provide the following:

1. Detailed shape of the general shape of the finished product and the bent portion (bending radius, inner contour size, tolerance range, etc.)
2. Material, thickness
3. Requirements for scratches (injuries)
4. Machine used for bending (machine model, maximum tonnage, table length)
5. Others, especially need to specify matters.

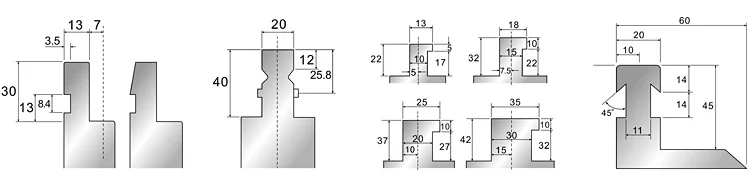

Upper die interface category:

15
European - AmadaTruBend - WeraLVDBeyeler - Bys Xpert

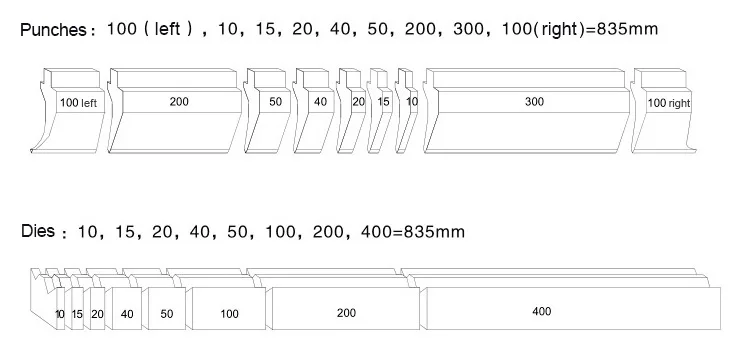

CNC bending tool segmentation, regular segment specifications are as follows:
Mold section 1
CNC bending on the mold: 100 (left), 10,15,20,40,50,200,300,100 (right) = 835mm
CNC bending lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm
Mold section 2
CNC bending on the mold: 100 (left), 10,15,20,40,50,165,300,100 (right) = 800mma1



Production Process:
Down → Forging → Tempering → Finishing → Quenching → Annealing → Conditioning → Coarse Grinding → Finishing → Inspection → Packaging → Factory



Ordering Information:
1. the price and pictures are for reference only, due to the particularity of the products, different specifications, different materials, different technical requirements, prices and pictures are not the same, please be sure to explain the specification materials and requirements, leave the way to contact you, We will contact you in time to give you a quote.
2. When contacting with our customer service staff, please tell us if you have purchased other products from our factory. Our company has record records for all customers so that you can easily find your original order information and save your precious time.
3. In order to provide you with the required products, please provide the product specifications, models and machine specific manufacturers, individual precision products also require you to provide your drawings, pictures or samples.
4. standard parts we can be shipped within a week, non-standard parts of the cycle, according to your workpiece is difficult to set!
5. The price and the picture are for reference only. Actually according to the needs of the pro, different prices of materials of different specifications and materials are also different; the postage is also imaginary, and large-size products generally take the logistics.



Company Information

1 (4)

Dongguan Quapin Hardware Co.,Ltd.

Dongguan Quapin Hardware Co., Ltd is a joint venture, it specialize in R&D, manufacturing both domestic and abroad CNC turret punch press tooling (NCT) mould. Quapin is Dongguan one of the most large-scale CNC turret punch press tooling manufacturer.

QUAPIN is equipped with advance production equipment and inspection equipment. For example, CNC Center has CNC machining center, CNC computer lathe, sodick CNC wire-cut machine, CNC EDM machine, Professional internal grinding, Precision cylindrical grinder, Precision flat stone mill other other advanced processing equipment and optical projections, Hardness tester, Sand blasting machine, Marking machine and other high-precision testing equipment. After years of efforts, the company established scientific, high-efficiency, perfect management system as well as CAD/CAM/UG manufacturing capability.

1-(4)

Quapin specializes in the research, development and manufacturing of CNC turret punch press molds. We provide one-on-one free technical service, lightning delivery and intelligent stocking; try our best to help the sheet metal manufacturing enterprises to increase production efficiency and minimize the processing cost of each product.
We Qaupin products team silently in the tens of thousands of sheet metal business, elevator business, sheet metal machine tool business, the world's top 500 enterprises and other services;
Quapin products in the mold to ensure quality, quality service at the same time, we constantly innovate! Adhering to do our best to help sheet metal production enterprises to improve production efficiency, the processing cost to a minimum!



Packaging & Shipping

Tooling Packaging

Clamp Packaging

Press Brake Tooling Packaging

11

FAQ

Q: Are you trading company or manufacturer ?
A: We have 11 year experience in the production of the factory, we are Dongguan mold production base. For the customer we offer the price of competitive, professional production, adequate supply, high production efficiency, greatly expanding the interests of customers.




Q: How long is your delivery time?
A: Generally it is 3-7 days if the tools are standard. Or it is 15-20 days if the tools is special forming shape.





Q: Do you provide samples ? is it free or extra ?
A: We do not provide samples.




Q: Do not receive the goods after payment or product delivery error how to do?
A: The customer is paid to Alibaba One Touch's account at the time of payment, and Alibaba will guarantee a full refund when you encounter both cases




Q: How is your after-sales service?
A: After the delivery of mold quality problems, replacement(except man-made damage)




Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
